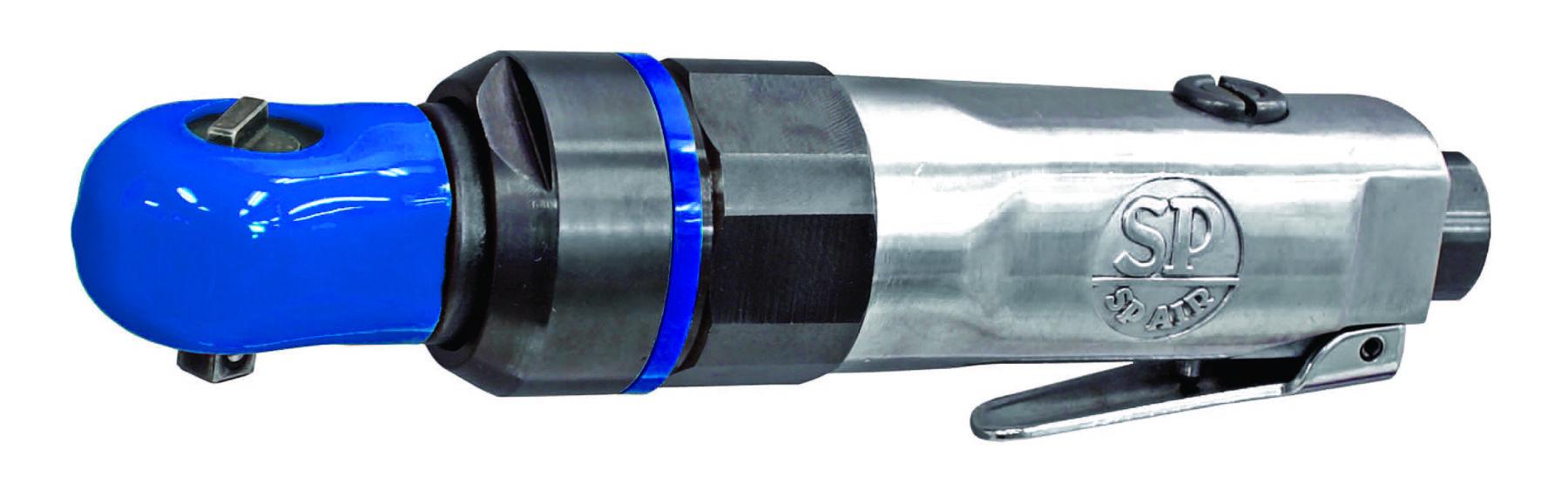

SP-1765HD 3/8″ Super Fast Mini Impact Ratchet

  • Upgraded- Increased 30% more speed and torque compared to previous SP-1765

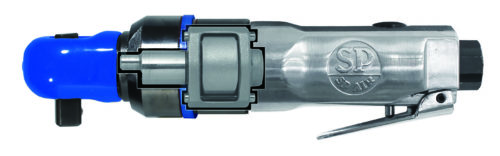

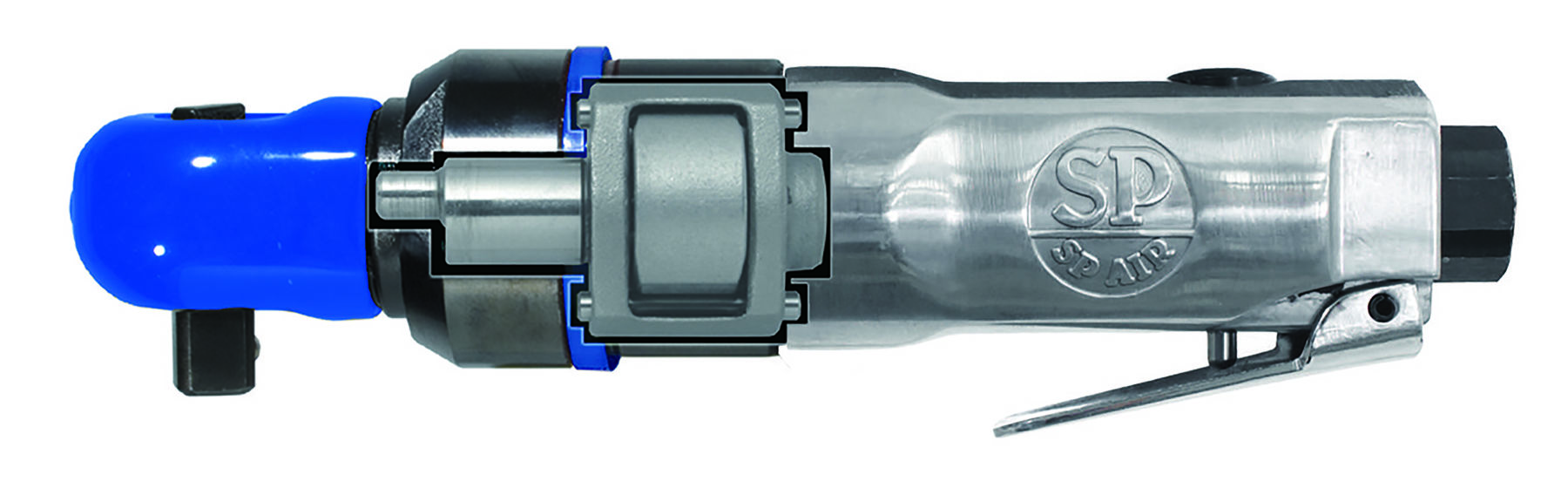

  • Single dog clutch impact mechanism provides a maximum speed of 700 RPM with a maximum torque of 55 ft/lbs.
  • Reaction free while still providing high speed and high torque
  • Durable and high quality construction
  • Exhibits full performance even in a restricted area

Specification

ModelSP-1765HD
Sq. Drive3/8"
Bolt Capacity3/8"
Maximum Torque Range55 ft-lbs.
Free Speed700 rpm
Overall Length6.9"
Net Weight1.4 lbs.
Sound Level84.4 dB

Click Here for Parts Breakdown for SP-1765HD





Review of the SP-1765HD 3/8″ Super Fast Mini Impact Ratchet

The SP Air Corporation 3/8″ Super Fast Mini Impact Ratchet, No. SP-1765, provides a maximum speed of 500 rpm and a maximum torque of 55 ft/lbs. A patented reaction-free impact mechanism helps minimize damage to the user’s wrist and knuckles. This tool comes in a compact size to safely and efficiently reach tight, space-restricted areas. This product has an overall length of 6-7/8”, and weigh 1-3/8 lbs. SP Air also offers the 1/4″ Super Fast Mini Impact Wrench, No. SP-1764, with the same power and torque as the SP-1765.

The review

Tom Karagianis, owner of Tarkus Automotive in Milwaukee, WI, is no stranger to working in tight spots. His shop specializes in machine work and European vehicles. Even though he is a shop owner, he and his brother do all the shop’s work. So, that means he has to get his hands dirty and appreciates a tool that helps him get the job done.

Karagianis’ quite simply was impressed by the brute power the tool had for its size.

“It’s hard to explain this tool, unless you use it. It’s kind of neat,” he said. “Its one of the fastest I have ever used.”

So fast that it intuitively feels too fast for its size. “It is so fast I’m afraid of breaking the head off, I don’t use it to reverse something that is stuck,” Karagianis commented. “It’s a mini 3/8″ air ratchet that is the size of a 1/4″ air ratchet. It’s about 7″ long, 8″ with an air fitting.  Yet, it has a 3/8″ head.”

When asked whether he thought he actually could break bolts with it, he replied that he didn’t doubt it’s ability. Rather, he liked the tool and was not used to something of that size packing that much power, so he did not want to use it as rough as one would use a bigger tool.

“Once you loosen the fastener watch out, it is going out!” Karagianis said.

He also liked that the tool was quiet and how the tool felt in his hand.

The box was not so easy to understand. “It seems to have every language in the world on this thing, besides ‘American,’ ” said Karagianis. When pressed about English being the language of the USA he just laughed and added, “What I can tell is that it’s made in Japan, not China. That’s a big deal.”

When asked to give his final comments on the tool, Karagianis simply said that “it looks and functions like the 1/4″ Matco tool, it has the same handle and everything, but it has a 3/8″ head. I like it just the way it is, there’s nothing I’d change.”
